TC-150 CIRCULATING WATER BATH NON-REFRIGERATED

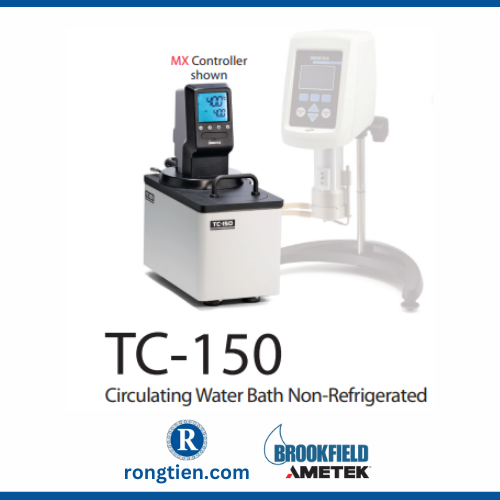

TC-150 Circulating Water Bath Non-Refrigerated
Compact – smallest “footprint” available
• 6-liter reservoir capacity
• Removable deck lid accommodates one 600 mL beaker to
measure viscosity directly in the bath
• Tap water cooling coil for temperature control at 25°C*
• Built-in circulator pump for use with external
water-jacketed devices**
• Available with MX, SD or AP Controller
FEATURES & BENEFITS
Compact – small “footprint”
Built-in circulator pump
Built-in tap water cooling coil
For use with water-jacketed devices
Controller Features of TC-150 Circulating Water Bath Non-Refrigerated
| MX Series | SD Series | AP Series |
| Economical | Best Value | Total Touch Screen Interface |
| Large Character Display | Programmable with PC Control using RheocalcT Software | Standalone Programmable |
| Single Speed Pump | 2-Speed Pump | Variable Speed Pump |
| Maximum Temperature up to 135°C | Quick Scroll to Set Temeprature to Standalone Mode | PC Control with RheocalcT Software |
Specifications of TC-150 Circulating Water Bath Non-Refrigerated
|
TC-150 Circulating Water Bath Non-Refrigerated |
|||||
| MODEL | Temperature Range Low | Temperature Range High | Controller | Cooling | Temperature Stability †† |
| TC-150AP* | Ambient +10° † | +200 ° C | AP | Tap Water** | 0.01 ° C |
| TC-150SD* | Ambient +10° † | +150 ° C | SD | Tap Water** | 0.05 ° C |
| TC-150MX* | Ambient +10° † | +135°C | MX | Tap Water** | 0.07°C |
|
TC-150 Circulating Water Bath Non-Refrigerated |
|||||||
| MODEL | Digital Type Resolution (Set / Read) |
Reservoir Capacity |
Pump Speed |
Flow Rate |
Internal Work Area DxWxH (inches) |
Overall Dimensions DxWxH (inches) |
Weight (Gross) |
| TC-150AP* | 0.01 / 0.001 | 6 liters | Variable | 16 LPM | 4.5 x 4.0 x 6.0 | 13.4 x 8.1 x 14.9 | 26 lbs |
| TC-150SD* | 0.1 / 0.1 | 6 liters | 2-speed | 11 LPM | 4.5 x 4.0 x 6.0 | 13.4 x 8.1 x 14.9 | 26 lbs |
| TC-150MX* | 0.1 / 0.1 | 6 liters | 1-speed | 12 LPM | 4.5 x 4.0 x 6.0 | 13.4 x 8.1 x 16.0 | 20 lbs |
*For use at lower temperatures, use the built-in tap water cooling or use model TC-351 Cooler for control to -20 ° C.
**Tap water connection required.
FOR TEMPERATURES HIGHER THAN 80 ° C PLEASE CONTACT BROOKFIELD FOR FLUID RECOMMENDATIONS.
Note: Specify voltage and frequency when ordering.
†Low temperature limit 10°C above ambient unless external cooling is used.
†† Temperature stability may vary depending on bath volume, surface area, insulation and type of fluid.
