QC-652S Melt Flow Index Tester

QC-652S can perform ISO/ASTM standards test methods, equip with touch panel that guide user to precisely and smoothly proceed with test. It also has analysis function and flash drive save function.

Description

• This tester can test thermoplastic melt mass flow rate(MFR) and melt volume flow rate(MVR), QC-652S can perform ISO/ASTM standards test methods, equip with touch panel that guide user to precisely and smoothly proceed with test. It also has analysis function and flash drive save function.
• Optional accessories can be selected according to different materials properties, such as high flow material block mechanism or MVR volume test mechanism to proceed with various tests.
• Download cataloge: https://www.come-tech.com.tw/en/pdf/3791

Conform to Standards

• ASTM D1238
• ASTM D3364
• ISO 1133
• GB/T 3682

Industry

Plastic, Medical Product, Mask

Application

ASTM D1238，ISO 1133　 Melt Flow Index

Specification

• Use Temperature:
  • B Type: 50~320°C
  • C Type: 50~400°C(Optional)
• Counter Accuracy: ±0.01s
• Piston Push Rod Weight: 100g
• Automatic Cut: Interval time 1~300 seconds can be set
• Heater Size: 9.55mm±0.01mm
• Hole Mold: 2.095mm±0.005mm
• Counter Weight: Stainless steel 1100g 、2060g、3700g、4900g、9900g、12400g、19900g、21500g ( Optional) ( rod weight 100g)
• Accessories: Cleaning brush, measuring cups, funnel and Die calibration plug gauge
• Weight: 40kg (machine weight)
• Dimension: 47x38x48 cm (47x38x60cm with MVR part)
• Optional Accessories
  • 1. High MI value material block mechanism
  • 2. MVR test mechanism
• Power: 220V Single phase 50Hz/60Hz, 7A

Standard Accessories

These are standard accessories.
Die, cleaning brush, measuring cups, funnel, Die calibration plug gauge.

Weight

These are optional accessories.
Select the suitable weights according to the requirement. 1100g, 2060g, 3700, 4900g, 9900g, 12400g, 19900g, 21500g (Stainless steel) ( The weight of rod 100g should be added additionally)

MVR

This is optional accessory.
MVR( Melt Volume Rate) is suitable for high MFR sample. We suggest to select when MI value is over 30.

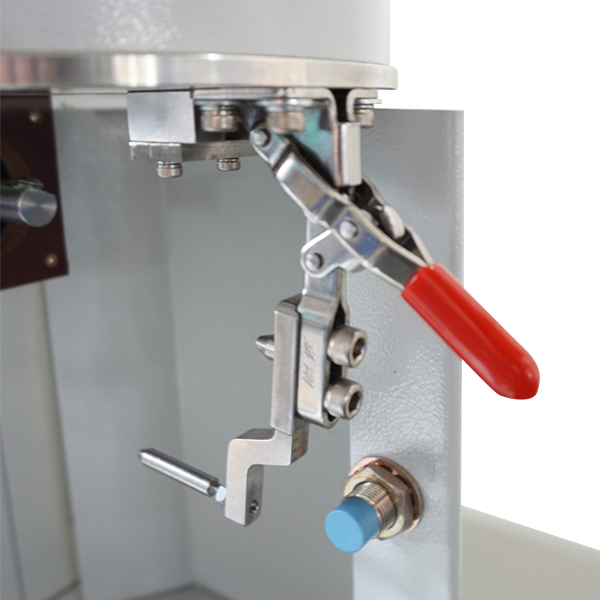

High MI value material block mechanism

This is optional accessory.
This mechanism is suitable for high flow rate sample. It is used to avoid material flow out of die during the beginning of test when input the test sample.
