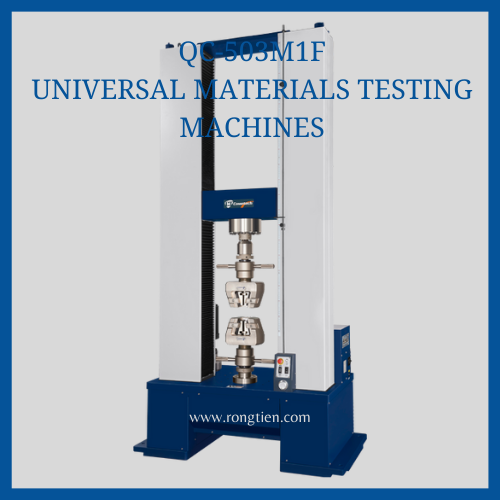

QC-503M1F Universal Materials Testing Machines (100kN | M1F)
QC-503M1F is capable of conducting material and product tests that are above 100KN according to standards ASTM, ISO, JIS, and GB. The machine is equipped with Servo motor and precise transmission system.
Description
- QC-503M1F is capable of conducting material and product tests that are above 100KN according to standards ASTM, ISO, JIS, and GB. The machine is equipped with Servo motor and precise transmission system.
- The rigid and endurable structure makes the test more stable and reduces damages to the machine. This series of UTM can be applied to metal, composites, construction material, and other materials that require high test force.
- Low noise operations and accurate test results are guaranteed.
- QC-503M1F with the 7° TFT touch screen is an optional accessory to perform tests on a standalone basis. The ups and downs of the crosshead can be slightly adjusted by jog controller, which makes the process of calibration and positioning more convenient and safe, thus preventing overload. The speed range is 0.2-375 mm/min, which conforms to various standards.
- download catalog QC-503M1F: https://www.come-tech.com.tw/en/pdf/3905
Conform to Standards
- ISO 7500-1
- ASTM E4
- JIS 475-88
- JIS B7721
- JIS B7733
- DIN 5122
- BS EN 1002-1
- BS 1610
- GB/T T228
Industry
Plastic, Textile, Composites, Metal, Construction, and others
Application
ASTM D790, ISO 178 Bending test
ASTM D638 Plastic Tensile Test
ASTM D412 Rubber Tensile Test
Function Sofware M1F:
1. Data sample rate faster can be set up to 1200 Hz
2. Operation method:Full-computerized control to run the test or Jog button control
3. Compatible with Window 7 /8 system
4. Software has multi-languages.
5. Interface for TCP/IP
6. Multi-curves display and real-time plot
7. Various units of measurement are available
8. Flexible form to manage database.
9. Free to name the data file.
10. Testing screen is selective to display data, graph at the same time.
11. Data processing: file saving, setting loading, report printing and data comparing.
12. Graph display: strain v.s. elongation, strain v.s. time and so on.
13. Tensile test, compression test, bending test, peel test…
14. Software protection: Overload, over -displacement ,over-time protection
15.Variety of test actions, ex.reciprocation, creep, hold tensile (compression), test pause, slip test, etc.
16.Modularization of specimen setting, providing easy to set specimen.
17.Modularization of test conditions to reduce artificial settingnegligence and error.
18.Key data capture, can set the upper and lower limits of test data specifications
19.Support multiple sets of I / O signals, increase testing mechanism
Specifications of QC-503M1F
- Max. Capacity: 100kN
- Force Resolution: 1/50,000(31 bits)
- Test Stroke(w/o grip): 1100mm
- Speed Range: 0.2~330 mm/min
- Data sampling rate: Max. 400Hz
- Motor: Servo Motor
- Feature
- 1.Equipped with jog controller to adjust displacement precisely
- 2. Optional anti-collision function for protecting loadcells
- 3.Loadcell automatic reading, calibrated without installed on machine
- Dimension: 140 x 66 x 235cm
- Weight: 1250 kg
Accessories
Display Panel
- 7″ color touch TFT display panel is used.
- Chinese, English, Japanese are supported.
- Displays force, pressure, displacement and time.
- Can perform test condition settings: test speed, direction, auto-return, stop at the break point.
- Can analyze max. force, interval force, force at break point, and so on.
- Provides multiple stopping point settings: force, displacement, time and elongation.
- Supports over travel, overload, overtime stop protection settings.
- Can save up to 50 test results; it also supports saving to USB.
- Restore the machine to factory setting is available.
- Can calibrate under stand-alone mode.
- Supports switching between Metric and Imperial units .
QC-551 Long Extensometer
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
