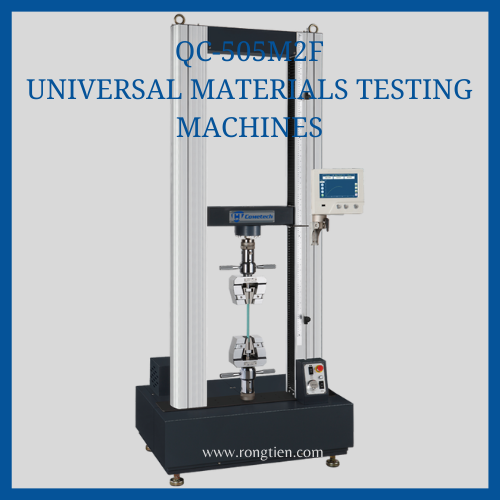

QC-505M2F Universal Materials Testing Machines (50kN | M2F)
QC-505M2F has large test space and long stroke, the maximum test capacity is 50 kN. Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results.
Description
- QC-505M2F has large test space and long stroke, the maximum test capacity is 50 kN. Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results.
- The machine has single-separated electric control box, separate electronic control system to avoid interference with the transmission components to increase test stability and also conducive to the maintenance and updating of electronic systems
- Support precision jog wheel can be fine tuning machine movement, with precision positioning and accurate calibration to increase test accuracy.
- High-speed signal feedback mechanism can reduce the chance of machine overload. The reserved external signal can be connected to an external signal source, increasing machine control mode.
- download catalog: https://www.come-tech.com.tw/en/pdf/4030
Conform to Standards
- ISO 7500-1
- ASTM E4
- ASTM D-76
- DIN 5122
- JIS B7721
- JIS B7733
- BS EN 1002-2
- BS 1610
- GB/T T228
Industry
Plastic, Textile, Metal, Architecture
Application of QC-505M2F
ASTM D790, ISO 178 Bending test
ASTM D638 Plastic Tensile Test
ASTM D412 Rubber Tensile Test
Specifications
- Max. Capacity: 50kN
- Force Resolution: 1/100,000 (30bits)
- Test Stroke(w/o grip): 1100mm
- Speed Range: 0.0002~600 mm/min
- Data sampling rate: Max.1200Hz
- Motor: Servo Motor
- Feature
- Designed for creep, cycle, load/strain control, foam testing, possion’s ratio, slippage, etc.
- More than 260 software analysis available
- Equipped with jog controller to adjust displacement precisely
- Optional anti-collision function for protecting loadcells
- Loadcell automatic reading, calibrated without installed on machine
- Dimension: 105 X 60 X 195cm
- Weight: 360 kg
Accessories
Display Panel
- 7″ color touch TFT display panel is used.
- Chinese, English, Japanese are supported.
- Displays force, pressure, displacement and time.
- Can perform test condition settings: test speed, direction, auto-return, stop at the break point.
- Can analyze max. force, interval force, force at break point, and so on.
- Provides multiple stopping point settings: force, displacement, time and elongation.
- Supports over travel, overload, overtime stop protection settings.
- Can save up to 50 test results; it also supports saving to USB.
- Restore the machine to factory setting is available.
- Can calibrate under stand-alone mode.
- Supports switching between Metric and Imperial units .
QC-551 Long Extensometer
QC-551 Long extensometer is suitable for higher than 20% elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.
QC-557 Short extensometer
QC-557 Short extensometer can measure metal, hard plastic of less than 100% elongation of material deformation. During test, it can measure complete test deform rate and do not need to dismantle it when during the test. When the specimen gauge length is longer or elongation rate is bigger, customized longer extensometer is also available.
M2F Software functions
- The data sampling rate is up to 1200 Hz..
- Controlled by mouse, keyboard and the up/down button on the machine to quick-adjust the position of grip.
- Windows system required.
- Chinese, English, Japanese, Korean, Portuguese, Polish, Spanish and Russian are available.
- Operation Mode: TCP/IP two-way transmission to connect with PC.
- Can import multiple test data and display at the same time.
- Supports Metric and Imperial units switching.
- Provides a flexible table for data analysis.
- Can name the data results and create a user-defined formula.
- Data can be shown through the table, graph, or both.
- Data processing: save, import, list, statistical comparison, and so on.
- The X-Y axis of the graph is adjustable including marks on the curve, interval marks, slope, and so on.
- Tensile, compression, bending, peeling, spring, creep and others are available.
- Supports over travel, overload, over time stop conditions as machine protection.
- Supports various test patterns such as reciprocation, creep, constant tensile (compression), test pause, slippage, 10-stage settings, and so on.
- Specimen modular design is for easy and quick specimen information setting.
- Test condition modular design can reduce man-made setting error.
- Supports upper and lower limits for data selection to get the key information.
- Supports multiple I/O ports for the additional test functions.
