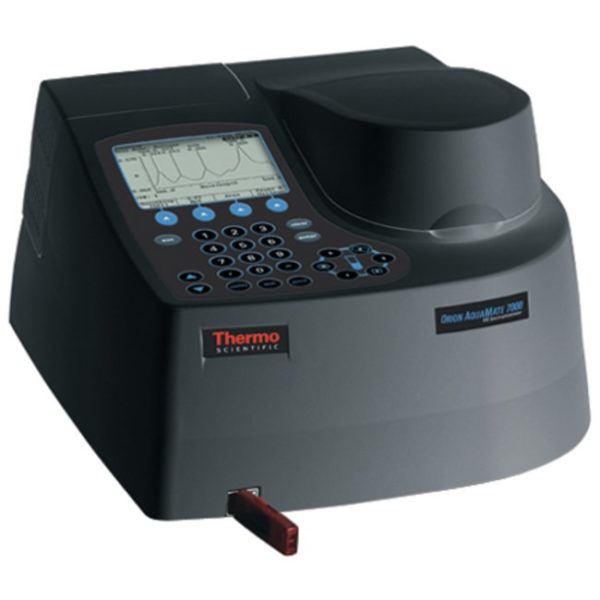

Orion™ AquaMate 7000 Vis Spectrophotometer

From

Choose the accuracy, dependability and ease of use of the Thermo Scientific™ Orion™ AquaMate 7000 Vis Spectrophotometer to optimize your water and wastewater testing. This dependable lab spectrophotometer includes 260 preprogrammed methods for ion concentration from absorbance or create custom methods using the standard curve function so virtually any brand of colorimetric reagent can be used. Utilize 325-1100 nm selectable wavelengths, 5 nm spectral bandwidth and vial size flexibility with the included 3-position carousel to hold 13-24 mm round, 10 mm square and 20-50 mm rectangular vials.



In stock

Pre-programmed Methods:

  • More than 260 preprogrammed methods offers easy and convenient measurements using Orion AQUAfast™, Merck™ or CHEMetrics™ chemistries
  • Preprogrammed methods can also be adapted for new chemistries or operators can create their own custom methods and calibration curves
  • Instruments allow a one-point adjustment on any preprogrammed method to correct for variations in batch reagent chemistries

Versatility:

  • Wide variety of vials sizes can be used, including 10mm square vials, 20 and 50mm rectangular vials and an adjustable round vial holder that accommodates 13, 16, and 24mm round vials
  • Three USB connections provide the options to store methods and data to a USB memory stick, transfer data to a computer and print hard copy data to an external printer
  • System is compatible with ink jet and laser printers with HP PCL 5 or greater

Verification:

  • Performance verification tests ensure wavelength accuracy and instrument functionality
  • Each verification report gives the time, date and instrument serial number in accordance with GLP and GMP
  • Built-in wavelength accuracy test is compatible with either the internal lamp or external calibrated standards
  • Built-in test methods for stray light, noise and resolution are available to validate instrument performance further

Includes:

  • Methods on USB memory stick
  • Three-position cell holder
  • User documentation
  • Dust cover
  • USB cable
  • 110V, 220V and 240V power cords



Accuracy ±1.0nm
Accuracy (Photometric) 0.5 % or ±0.005A, whichever is greater up to 2A
Compatibility Compatible with ink jet and laser printers with HP PCL 5 or greater
Connections USB type A port for USB stick (front panel), USB type B port for computer (rear panel), USB type A port for printer (rear panel)
Description AquaMate 7000 Vis Spectrophotometer
Detector Type Silicon photodiode
Display Graphical with LCD backlight—9.7 x 7.1cm (3.8 x 2.8 in.)
Drift 0.002 A/hr after warm-up
Electrical Requirements 100 to 240V 50/60Hz
Height (English) 9.8 in.
Height (Metric) 25cm
Hertz 50/60Hz
Includes Methods on USB memory stick; 3-position cell older; User documentation; Dust cover; USB cable 110V and 220V power cords
Item Description AquaMate 7000 Vis Spectrophotometer
Keypad Sealed membrane with tactile response keys
Lamp Tungsten-halogen lamp (1,000 hours)
Min. Data Interval 1.0; 2.0; 3.0; 5.0nm
Noise <0.001 A at 0.0 A; <0.002 A at 2.0 A Peak-to peak at 340nm
Optical Design Single beam
Photometric Linearity Up to 3.0A at 340nm
Range (Photometric) -0.1 to 3.0 A ; -0.3 to 125 %T ; ±9999 C
Spectral Bandwidth 5nm
Stray Light <0.08 %T at 220nm and 340nm; <0.1 %T at 340nm and 400nm; <1.0 %T at 198nm
Voltage 100 to 240V
Wavelength Range 325 to 1,100nm
Wavelength Repeatability ±0.5nm
Wavelength Scan Speed 10 to 4,200nm/min
Wavelength Slew Speed 11,000nm/min
Weight (English) 19 lb.
Weight (Metric) 8.6kg
Width (English) 11.8 in.
Width (Metric) 30cm
Unit Size Each
