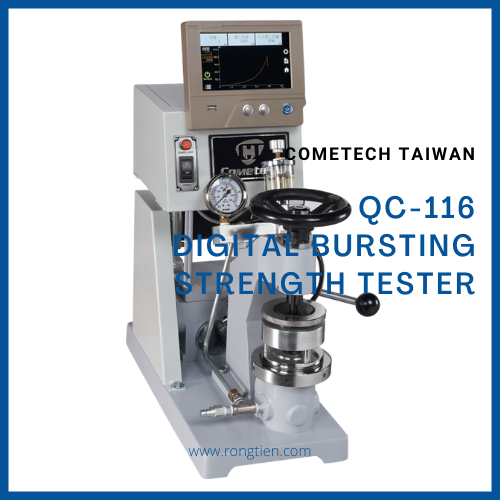

QC-116 Digital Bursting Strength Tester
QC-116 Digital Bursting Strength Tester is used for samples such as base paper, corrugating paper, leather, synthetic leather.
Description
The Bursting Strength Tester is used for samples such as base paper, corrugating paper, leather, synthetic leather. This tester is a digital type that features automatic compensation mechanism and sensor calibration to obtain a more accurate test result. The real-time force graph shows current status in various units for user’s choice, facilitating user’s data reading.
Conform to Standards
- ASTM D2210
- ISO 2759
- GB/T 6545
- JIS P8112
- JIS L1018
- TAPPI T403
Industry
Textile, Paper, Packaging
Catalog Download
QC-116 Digital Bursting Strength Tester
Specifications of QC-116
Type: High pressure/ Low pressure/ Textile
Test speed
- High pressure：170 ± 15 ml/min
- Low pressure：95 ± 5 ml/min
- Textile：98 ± 4 ml/min
Pressure display: By digital touch screen
Capacity: 75 kg/c㎡
Platen diameter-Upper
- High pressure：31.5 ± 0.05 mm
- Low pressure：30.5 ± 0.05 mm
- Textile：30.5 ± 0.05mm
Platen diameter-Lower
- High pressure：31.5 ± 0.05 mm
- Low pressure：33.1 ± 0.05 mm
- Textile：30.5 ± 0.05mm
Gear position: Pressurization, neutral, return
Features
1. Using flow switch, and can switch to different speed of pressurization
2. Equipped with a 7-inch touch screen, and show real-time pressure and bursting time
3. Data exportable to USB
Dimension: 53 x 33 x 58 cm
Weight: 60 kg
Power: Single phase 110~240VAC，5A
Accessories
Rubber film-low pressure
- This ancessory for the bursting strength test is placed under the test specimen plate. After pressurization, the glycerin will hold up the rubber film and then break the test specimen.
- This is a test consumable that will be fouled, fatigued or broken when used for a period of time and will need to be replaced if necessary.
Note: Low pressure rubber film is applicable to the range 0~10kgf/c㎡
Rubber film-high pressure
- This accessory for the bursting strength test is placed under the test specimen plate. After pressurization, the glycerin will hold up the rubber film and then break the test specimen.
- This is a test consumable that will be fouled, fatigued or broken when used for a period of time and will need to be replaced if necessary.
Note: High pressure rubber film is applicable to the range 6~75kgf/c㎡
Aluminum foil
- Standard sheet for calibration
- Regular use of standard aluminum foil to check the condition of the testing machine. If the deviation is too large, it is recommended to replace a new rubber film.
Printer
- Able to directly print out results
