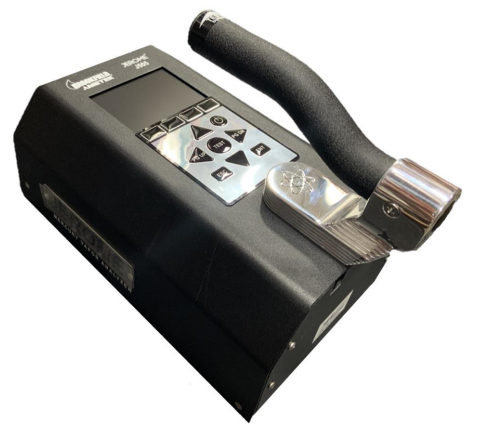

Toxic Gas Analyzers – Jerome® J505
Hand-held Atomic Fluorescence Spectroscopy Mercury Vapor Analyzer
The Jerome® J505 Mercury Vapor Analyzer is a portable fluorescence spectroscopy analyzer, which allows the detection cell to be simpler, smaller, lighter weight and more durable than competing spectroscopy instruments. The highly efficient optical cell requires less flow to purge the system, allowing the J505 to run at a lower flow rate minimizing sample dilution as found in competing spectroscopy instruments.
- Lightweight:Weighs only 6.5 pounds, less than half that of some atomic absorption mercury detectors.
- No downtime:Because the J505 uses atomic fluorescence to detect mercury, no regenerations or downtime are needed.
- Sensitive:Meets and exceeds EPA standards for industrial and residential remediation actions.
- Few Intereferences:With 18 hours of battery life per charge, the J505 is always ready when you need it.
- Proven:The Jerome J505 is in active use by the EPA, Los Angeles County, the City of New York and many others.
Specifications–
Detection Range: 0.05 µg/m3 to 500 µg/m3 Resolution: Standard Mode: 0.01 µg/m3 (10 ng/m3)
Quick Mode: 0.1 µg/m3 (100 ng/m3)
Search Mode: 0.1 µg/m3 (100 ng/m3)Accuracy: ±15% at 0.3 µg/m3
±10% at 1 µg/m3
±10% at 25 µg/m3
±10% at 100 µg/m3Response Time: Standard Mode: 28 seconds
Quick Mode: 16 seconds
Search Mode: 8 seconds, then updates in 1 second intervalsFlow Rate: 1 L/min Result Units: ng/m3, µg/m3, mg/m3 Autosample Intervals: 1, 2, 5, 10, 15, 20, 30, 45, 60 or 120 minutes Integrated Data Storage: 10,000 test results; retains date, time and up to 100 locations Display: 3.5″ (9 cm) color LCD Battery: Rechargeable NiMH
10+ hour life, charges in 3 hoursPower Requirements: 12 VDC for the instrument;
100-240 VAC, 1A, 50-60 Hz for the AC power supplyFuse: Auto-resetting fuse Operating Environment: 5°C to 45°C, non-condensing, non-explosive Output: USB A Dimensions: 12″ L x 6.2″ W x 8.4″ H
(30.5 cm L x 15.7 cm W x 21.3 cm H)Weight: 6.5 lbs. (3.0 kg) Warranty: 1 year, factory parts and labor Certifications: UL 61010, CE Features–
Atomic Fluorescence Spectroscopy: The advanced technology of the Jerome® J505 eliminates nearly all interferences, ensuring you get accurate and repeatable results in the field or in the lab.
Portable: The J505 packs the advanced capabilities of a sophisticated benchtop analyzer into a compact, portable and powerful device. The detection cell is also smaller, lighter and more durable than atomic absorption units.
Lower Flow Rate: The highly efficient optical cell requires less flow to purge the system, allowing the J505 to run at a lower flow rate and minimizing sample dilution as found in other spectroscopy instruments.
Regulatory Compliance: The J505 can detect mercury at levels as low as 0.05 µg/m3, which meets and exceeds EPA and ATSDR standards for industrial and residential remediation actions as well as OSHA, NIOSH, ACGIH and MSHA action levels.
ZERO Regenerations: Because the J505 uses atomic fluorescence spectroscopy to detect mercury, no regenerations or regeneration-related downtime are needed.
Search Mode: While in search mode, users are able to continuously draw in samples of air in order to locate the source of mercury contamination, allowing targeted corrective action to be taken quickly.
Durable: The J505 is housed in a light, ergonomically designed, durable metal casing that sets a new precedent for hand-held, low-level mercury analyzers.
Data Logging: The integrated data logging system can store data for up to 10,000 test results – including date, time and up to 100 test sites.
Intuitive Interface: The J505 features a color display with an intuitive menu system that makes operation easier than ever before and comes with a USB interface for easy data transfer.
Accessories, Parts & Consumables–
Part Number Description 345-0241 Intake Fritware 990-0223 10:1 Dilution Module 990-0244 AC Adapter Power Supply 990-0247 Soft-Sided Carrying Case 1400 2002 Probe 6000 4003 Line Cord, 115 VAC Y505-0901 Accessory Kit Y990-0234 Mercury Spill Kit Y990-0234 Hard-Sided Carrying Case Z2600 3905 Zero Air Filter
